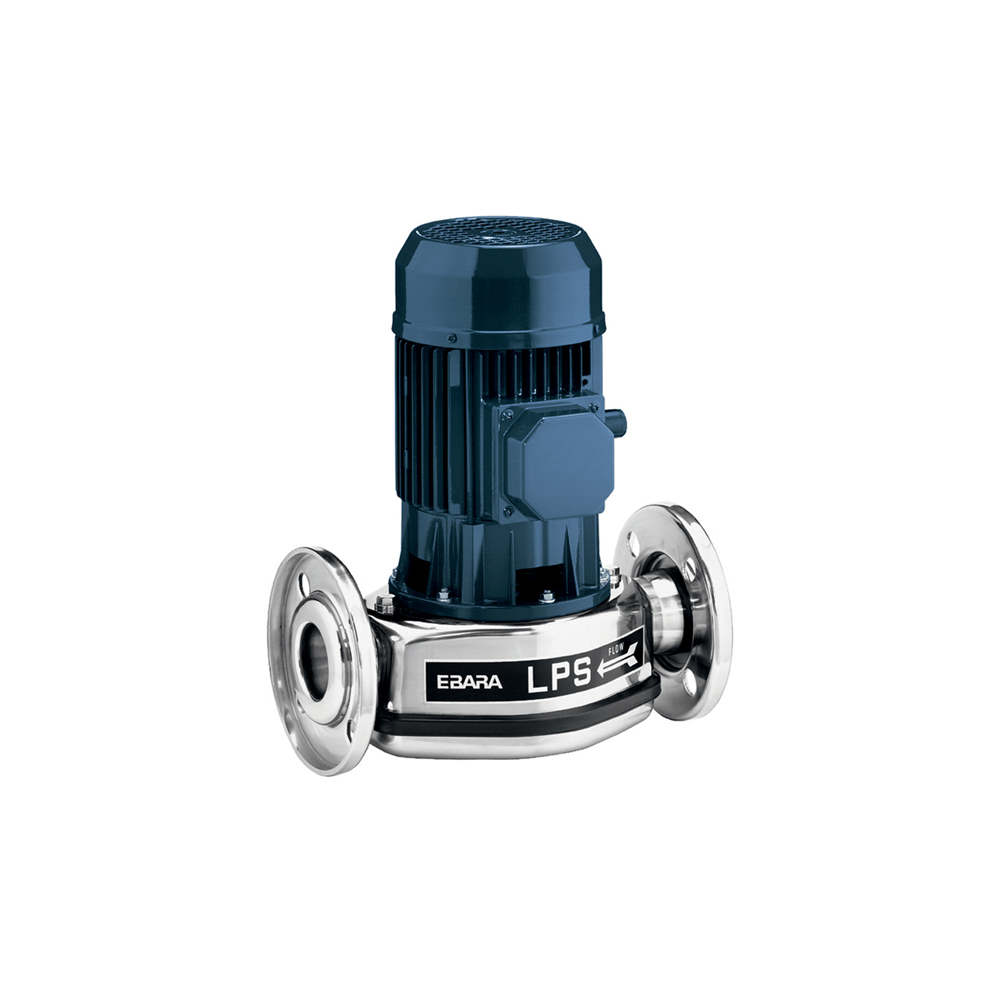

LPS/I 50/150
Original price was: 31.460.000 ₫.22.000.000 ₫Current price is: 22.000.000 ₫.
AISI 304 stainless steel in-line centrifugal pump, with suction and discharge on the same axis, equipped with high-efficiency ventilated motor. Suitable for circulation, civil and industrial heating systems
Description
In-line centrifugal pump with hydraulics in AISI 304 stainless steel, with suction and discharge positioned on the same axis.
The LPS is equipped with high-efficiency ventilated motors that make it versatile and very suitable for large capacities and large systems.
For further technical information see the Databook
• Circulation, civil and industrial heating systems
• Handling of domestic hot water, low-pressure liquids in general
• Cooling and air conditioning systems
Technical data
| Flow rate | from 1.2 to 12 m³/h |
| Total head | from 2.4 to 12.5 m |
| Max. working pressure | 2 bar for LPS single-phase and LPS 25 three-phase 4 bar for LPS 32 three-phase |
| Max. temperature of the liquid | -10°C ÷ +100°C |
| MEI | > 0.4 |
| Poles | 2 |
| Insulation class | F |
| Protection degree | IP55 |
| Voltage | Single-phase 1~230V ±10% Three-phase 3~230/400V ±10% |
Materials
| Pump body | AISI 304 (EN 1.4301) |
| Impeller | AISI 304 (EN 1.4301) |
| Shaft | Stainless steel AISI 303 (EN 1.4305) (part in contact with liquid) |
| Mechanical seal | Ceramic/Carbon/NBRH |
| Motor support | Aluminium |
Additional information
| Weight | 20,5 kg |
|---|---|
| Material | Casing: AISI304, impeller: AISI 304, Shaft; AISI 304 |
| Suction size | 50 |
| Discharge size | 50 |
| Power Rating | 1.5 |
| Voltage | Delta: 230V / Star: 400V |
| Flow Rate (lpm) | 120-400 |
| Head (Lift Height) (m) | 19.8-13.7 |
| Speed (rpm) | 2900 |
| Usage/Application | Domestic supply water |
| Country of Origin | Made in ITALY |
| Ingress Protection (IP) Rating | IP55 |
